Walk-in Cold Room (2–8 °C / up to −30 °C)
Cold Rooms

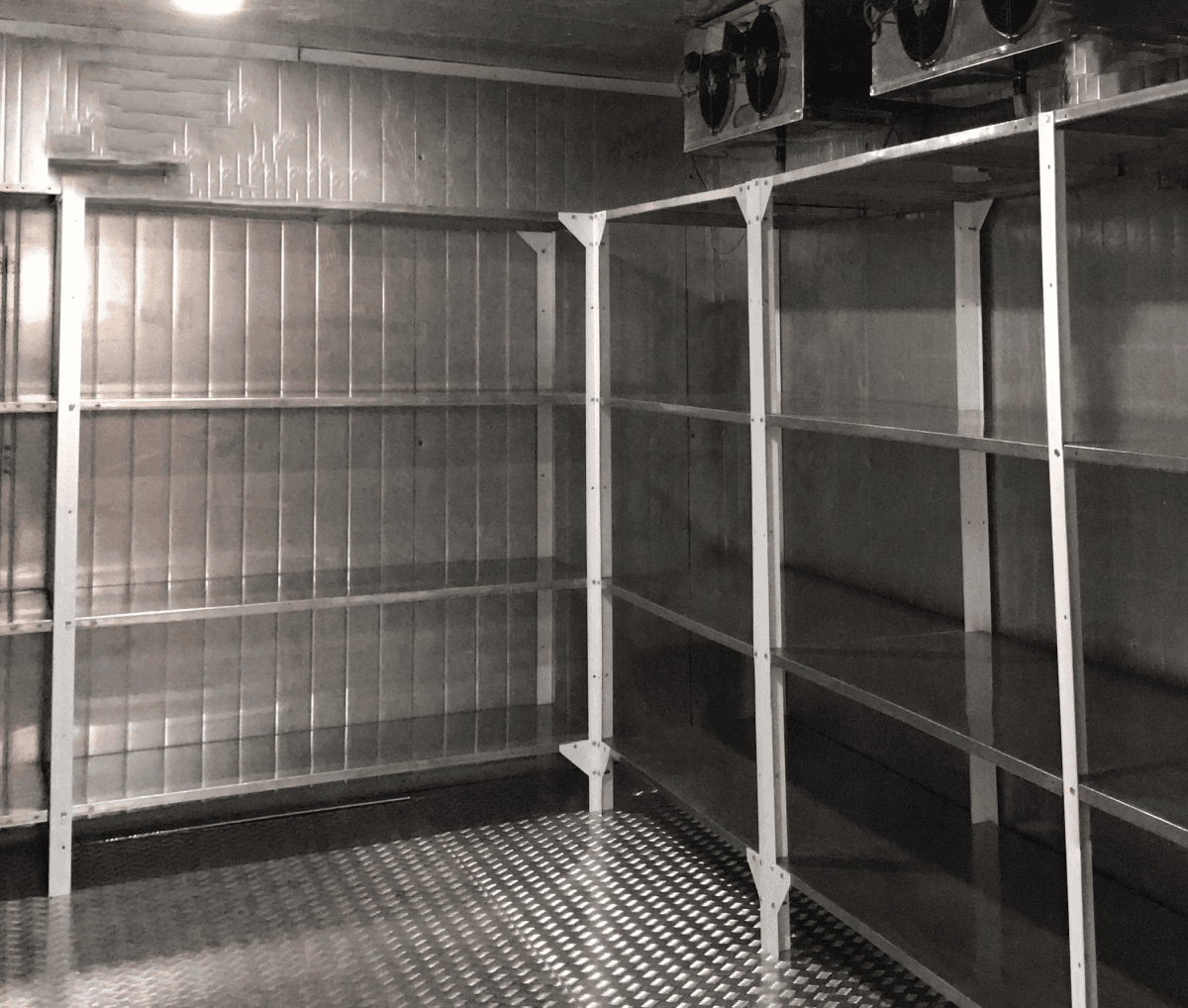

The Wostock Walk-in Cold Room is a modular cold storage system designed for pharmaceuticals, plasma, vaccines, and laboratory reagents. With customizable volumes, robust stainless steel/PPGI construction, and advanced digital monitoring, it ensures secure preservation even under harsh ambient conditions. Walk-in Coolers maintain +2 °C to +8 °C, while Walk-in Freezers reach down to −30 °C, providing uninterrupted protection with integrated power backup options.
Product Features
Dual Temperature Range: Coolers (+2 °C to +8 °C) and freezers (down to −30 °C).
Superior Insulation: 100–120 mm high-density polyurethane panels with U-value ≤ 0.17 W/mK.
Dual Refrigeration: 100% standby system with automatic duty cycling.
Customizable Design: Modular cam-lock panel construction tailored to site requirements.
Secure Doors: Self-closing insulated doors with safety release, view ports, and PVC strip curtains.
Uniform Cooling: Forced-air evaporators with auto-defrost for consistent performance.
Power Backup: Servo stabilizer, battery backup for monitoring, and DG set integration.
Advanced Monitoring: Microprocessor controller with real-time logging, alarms, USB data export, IoT-ready.
Durable Panels: SS-304 or PPGI with cam-lock assembly for strength and hygiene.
Technical Specifications
Parameter | Specification |
|---|---|
Temperature Range | Coolers: +2 °C to +8 °C (ambient up to 43 °C); Freezers: down to −30 °C |
Insulation | 100–120 mm polyurethane foam (40 kg/m³ density), optional extruded polystyrene inserts; U-value ≤ 0.17 W/mK |
Panel Construction | Modular cam-lock panels; Inner: SS-304/PPGI; Outer: SS-304/PPGI |
Doors | Flush-type, self-closing with heated seals, safety release; optional viewing port; PVC strip curtains |
Lighting | Ceiling-mounted LED luminaires ≥150 lux with pilot light switch |
Refrigeration System | Dual hermetic/scroll compressors, eco-friendly refrigerants, forced-air condensers/evaporators, auto defrost |
Control & Monitoring | Microprocessor with ±0.5 °C accuracy, 10,000+ record logging, USB export, IoT-ready (Bluetooth/Wi-Fi/GSM) |
Alarms | High/low temp, door open, power failure, probe fault (battery-supported audio/visual) |
Shelving | Adjustable SS-304 perforated racks, load ≥0.075 kg/cm² |
Power Supply | 220–240 V single-phase / 380–400 V three-phase, 50 Hz; with DG set integration |
Compliance | ISO 13485:2016, ISO 9001:2015, IEC 60601-1, CDSCO Class B |
