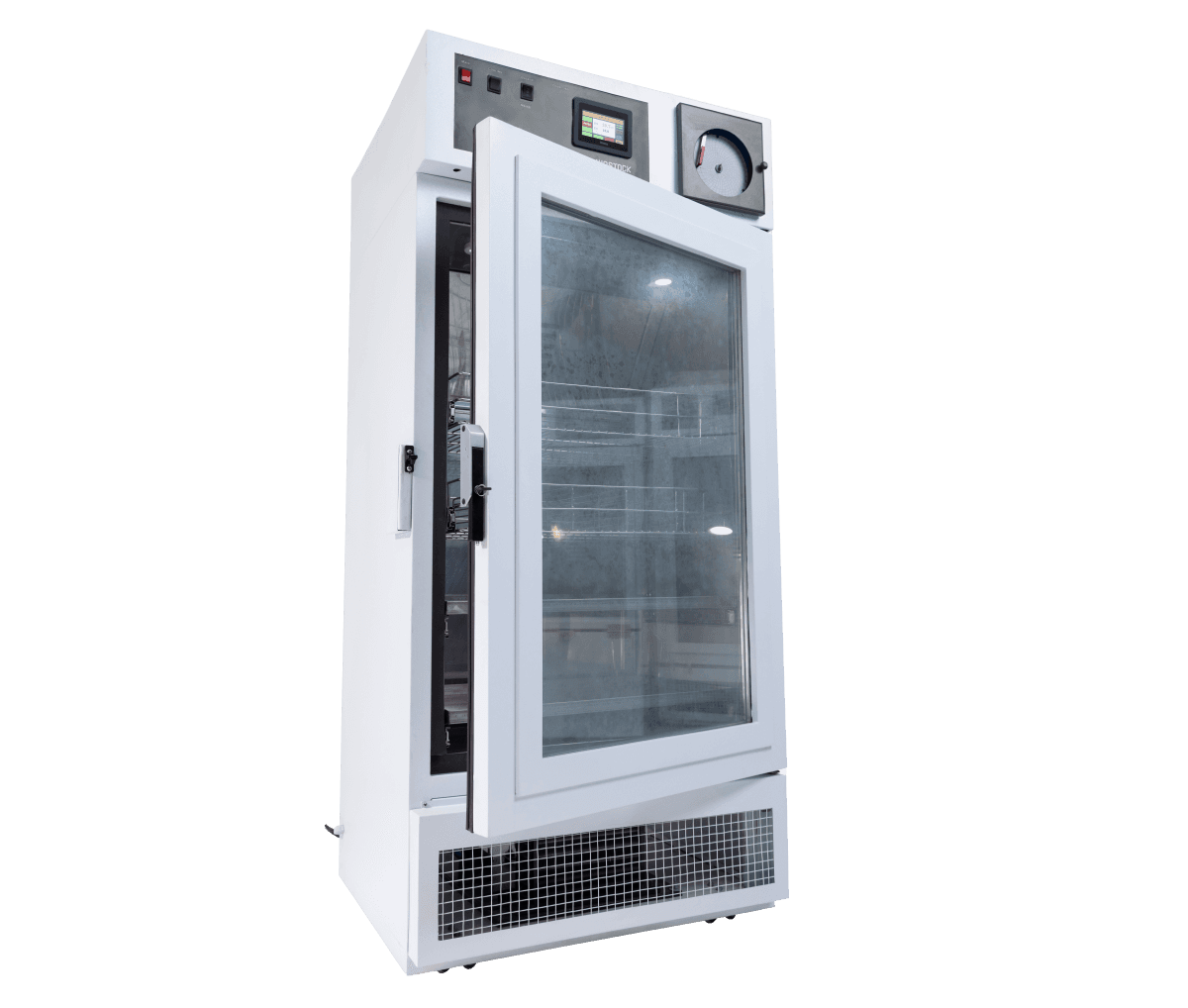

Blood Bank Refrigerator (2–8 °C)
BBR Series
The Wostock Blood Bank Refrigerator ensures safe and uniform storage of whole blood and blood components between +2 °C and +8 °C. Designed with advanced forced-air circulation, triple-pane heated glass doors, and stainless steel interiors, it delivers precise temperature stability with full visibility. Equipped with microprocessor-based digital controls, alarms, and compliance-ready monitoring, the BBR Series is the reliable choice for hospitals, blood banks, and clinical laboratories.
Product Features
Uniform Cooling: Forced-air circulation prevents temperature irregularities.
Durable Construction: Stainless steel (SS-304) interior and epoxy-coated GI exterior.
Superior Insulation: 80 mm PUF with magnetic gaskets for energy efficiency.
Clear Visibility: Triple-pane heated glass doors with internal LED lighting.
Secure Access: Ergonomic handle with key-lock designed for high-intensity usage.
Digital Control: Microprocessor with HMI display (1”, 4”, or 7” options).
Continuous Monitoring: Chart recorder and USB event logging.
Optional Add-ons: USB data extraction, battery backup for alarms, voltage stabilizer, flexible shelving, biometric/magnetic locks.
Technical Specifications
Parameter | Specification |
|---|---|
Type | Upright Glass-Door Refrigerators |
Temperature Range | +2 °C to +8 °C |
Monitoring | Chart recorder, alarms, USB logging |
Controls | Microprocessor with HMI (1”, 4”, or 7”) |
Doors | Triple-pane heated glass, ergonomic handle with lock |
Insulation | 80 mm high-density polyurethane foam |
Construction | Outer: Epoxy-coated GI; Inner: Stainless Steel 304 |
Air Circulation | Forced-air circulation |
Power Supply | 220–240 V, 50 Hz |
Compliance | ISO 13485, IEC 60601-1, CDSCO Certified |
Product Models
Type | Model No. | Capacity (L) | Storage Capacity (450 ml / 350 ml Plasma Bags) | Interior Dimensions (mm) | Exterior Dimensions (mm) |
|---|---|---|---|---|---|
Single Door | BBR-223 | 223 | 120 / 150 | 610 × 600 × 610 | 1125 × 760 × 775 |
BBR-315 | 315 | 180 / 225 | 862 × 600 × 610 | 1377 × 760 × 775 | |
BBR-402 | 402 | 240 / 300 | 1100 × 600 × 610 | 1615 × 760 × 775 | |
BBR-500 | 500 | 300 / 375 | 1366 × 600 × 610 | 1881 × 760 × 775 | |
BBR-585 | 585 | 360 / 450 | 1600 × 600 × 610 | 2115 × 760 × 775 | |
Double Door | BBR-905DD | 905 | 480 / 600 | 1100 × 1350 × 610 | 1615 × 1510 × 775 |
BBR-1124DD | 1124 | 600 / 750 | 1366 × 1350 × 610 | 1881 × 1510 × 775 |
